Overview

REED (Representation-Enhanced Elucidation of Diffusion) is a theoretical and practical framework for guiding diffusion models with high-quality pretrained representations.

Theoretical Characterizations: REED systematically incorporates external representations into the diffusion process by decomposing the reverse process and injecting guidance at optimal timesteps. This perspective generalizes prior methods like REPA and RCG and highlights how to balance representation learning and data generation. Learn more →
Algorithmic Innovations: We introduce two new strategies for enhancing representation alignment in diffusion models: aligning with multimodal representations from synthetic auxiliary modalities and an optimal training curriculum that balances representation learning and generation. Learn more →
Empirical Results: REED demonstrates superior performance and accelerated training across diverse generation tasks, including image generation, protein inverse folding, and molecule generation.In particular, on the class-conditional ImageNet 256×256 benchmark, REED achieves 23.3 times faster training than SiT-XL and 4 times speedup over REPA. Learn more →

Theoretical Characterizations

We introduce a general theoretical framework for representation-enhanced diffusion models. Building on the DDPM framework, we explore how representations can offer additional information and enhance the diffusion generation process. We provide a brief overview below. For more details, please refer to Section 2 in our paper.

Variational Bound with Decomposed Probabilistic Framework. We build a variational framework for diffusion models augmented with pretrained representations. By decomposing the joint probability $p(x_{0:T}, z)$ into conditional components and introducing a timestep weight schedule $\alpha_t$, the framework controls when and how the representation $z$ influences the reverse diffusion process. Injecting representations earlier yields more accurate conditional transitions but may degrade the approximation of $p(z|x_t)$; therefore, REED uses a weighted combination of conditional and unconditional paths. The resulting hybrid distribution $\tilde{p}_\theta(x_{t-1} | x_t, z; A_t)$ gradually phases in representation guidance during training.

Multi-Latent Representation Structure. The expressiveness of latent representations can be significantly enhanced through a multi-latent structure, as shown in prior works like NVAE. Instead of modeling a single representation $z$, we extend our formulation to a series of representations $\{z_l\}_{l=1}^L$, each indicating a different level of abstraction. This inspires us to leverage multimodal representations for REED as multi-level latents.

Connecting Existing Approaches, RCG and REPA. Our theoretical formulation provides a general and flexible framework for representation-enhanced generation by introducing two key components: a customizable weighting schedule $\{\alpha_t\}_{t=1}^T$ and a hierarchical latent structure $\{z_l\}_{l=1}^L$. This framework recovers several existing approaches as special cases, in particular RCG and REPA:

When $L=1$, and $\alpha_t=\delta_{t,1}$, i.e., the representations come in fully at the beginning, we recover the RCG framework.
When $L=1$ and $\alpha_t=1/T, \ \forall \ t$, i.e., the cumulative weights decrease linearly over time, we recover the REPA framework.

Our REED method builds upon the REPA setting, adopting the linear weighting schedule. Importantly, we move beyond the original $L=1$ setting to the more general case of $L>1$, enabling the novel use of richer multimodal representations through synthetic data. Additionally, inspired by our variational bound formulation, we propose a better training curriculum that dynamically balances the data generation and representation modeling objectives, further enhancing model performance and flexibility.

Algorithm Details

Building on the theoretical insights, we make two key innovations to drive REED's success:

Multimodal Representation Alignment. In addition to the representation $z^x(x)$ of the target modality $x$, REED also aligns diffusion training with multimodal representations $z^y(y)$ from a different modality $y$, such as vision-language models (VLMs), protein folding models, or molecular representation learners. $$\mathcal{L}_{\text{repgen}}(\theta,{\psi_x},{\psi_y}) := -\mathbb{E}_{x,y,t,\epsilon} \Big[\lambda_x \text{sim} (z^x(x),\text{proj}^x_{\psi_x}(h_t^{l_x})) + \lambda_y \text{sim} (z^y(y),\text{proj}^y_{\psi_y}(h_t^{l_y})) \Big]$$ To construct multimodal data pairs, we generate synthetic data from the different modality $y$ corresponding to $x$, which enables complementary information flow across tasks. In accordance with the Platonic representation hypothesis, incorporating data from other modalities should enhance generation or comprehension in the original modality of interest.
Curriculum Scheduling. A novel training schedule balances representation alignment and diffusion loss. The curriculum applies representation learning from the very beginning while gradually increasing the diffusion loss coefficient, yielding faster convergence and higher generation quality. The resulting REED loss at epoch $n$ is given by:

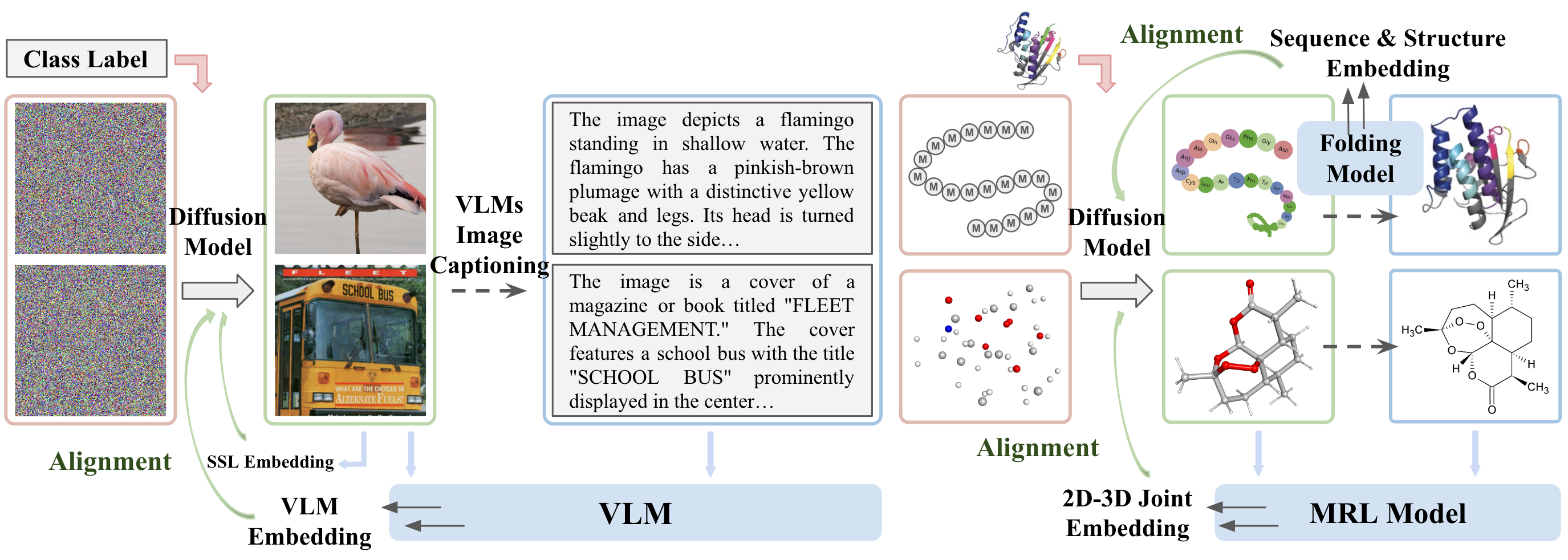

Illustration of REED's multimodal alignment framework showing image, protein, and molecule modalities

Figure 1: High-level illustration of the REED framework. Diffusion models are aligned with rich representations of synthetic auxiliary data modalities, generated from vision-language models (left), folding models for protein sequences (top right), and multimodal models for molecular structures (bottom right). The joint training pipeline leverages synthetic captions, sequence & structure embeddings, and 2D-3D molecular embeddings.

REED implements three practical instantiations for domain representations:

Images. Image features are drawn from pretrained self-supervised models to offer low-level details, while VLMs generate synthetic captions and corresponding cross-modal embeddings for high-level semantic guidance.
Protein Inverse Folding. We employ a folding model, AlphaFold3 (AF3), to generate auxiliary structures from target sequences. We obtain sequence representations from both single token embeddings and pair embeddings from AF3's Pairformer, and get the structure representation from the AF3 diffusion head.
Molecules. We use the graph-level invariant representations from pretrained molecular representation learning (MRL) model to generate 2D-3D joint embeddings and improve generation quality.

Results

REED delivers consistent improvements across diverse generative modelling tasks, including image generation, protein inverse folding, and molecule generation.

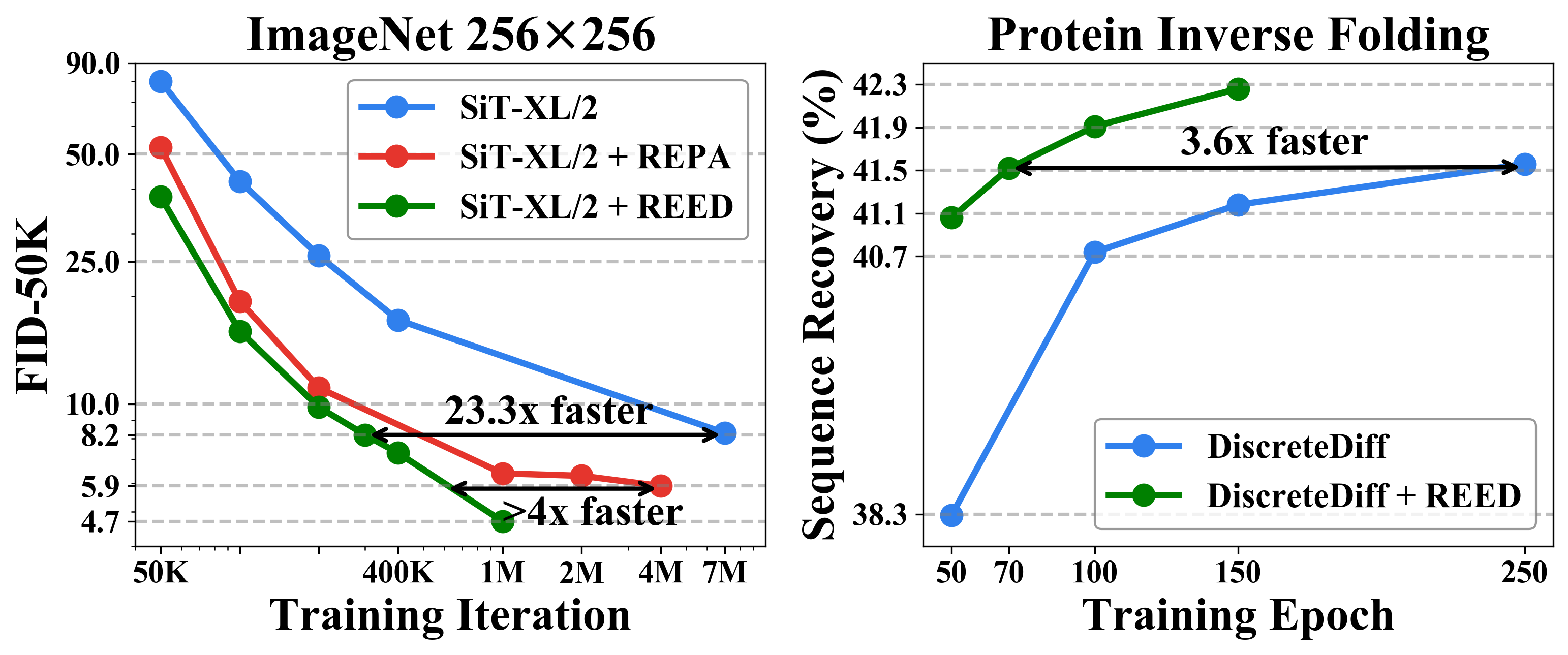

Training speed improvements on ImageNet and protein inverse folding

Figure2: On image generation, REED (green) reaches low FID much faster than SiT-XL/2 (blue) and REPA (red). On protein inverse folding, REED (green) accelerates diffusion training by 3.6×, achieving higher sequence recovery at fewer epochs.

Image Generation

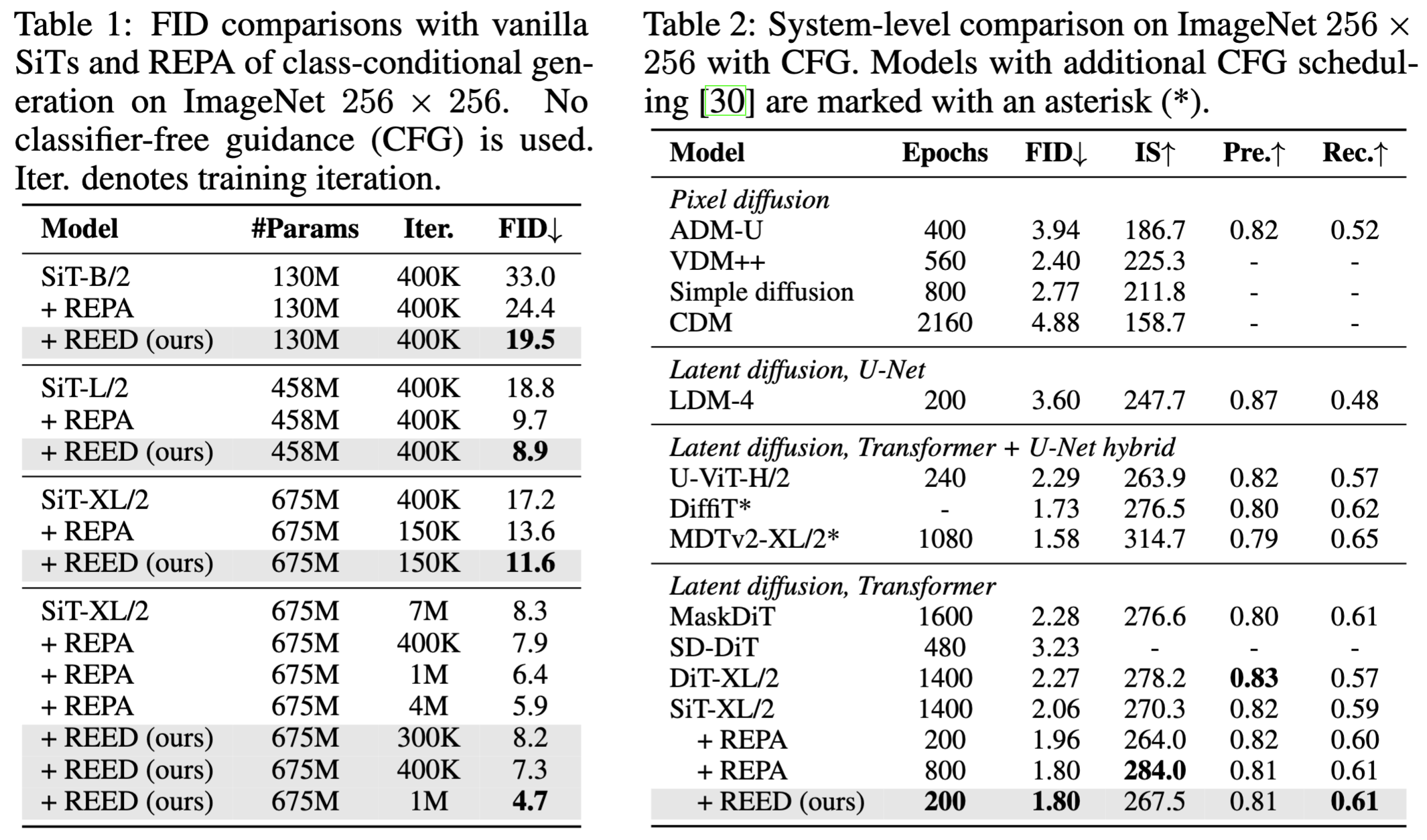

On the class-conditional ImageNet 256×256 benchmark, aligning SiT-XL/2 with DINOv2 and Qwen2-VL representations using REED's curriculum accelerates training and improves FID scores. REED achieves a 23.3× training speedup over the original SiT-XL, reaching FID = 8.2 in just 300 K iterations without classifier-free guidance, and a 4× speedup over REPA while matching its FID 1.80 performance with only 200 epochs of training.

We provide several qualitative samples generated by the SiT-XL/2+REED model after 1M training iterations as below.

Figure 3: Selected samples on ImageNet 256×256 generated by the SiT-XL/2+REED model after 1M training iterations. We use classifier-free guidance with w = 1.275.

sampled class-conditioned images from REED

Figure 4: Selected samples on ImageNet 256×256 generated by the SiT-XL/2+REED model after 1M training iterations. We use classifier-free guidance with w = 4.0. Each row corresponds to the same class label. From top to bottom, the class labels are: “macaw” (88), “flamingo” (130), “borzoi, Russian wolfhound” (169), “Samoyed” (258), “Egyptian cat” (285), “otter” (360), “dogsled” (537), “jigsaw puzzle” (611), “laptop” (620), “school bus” (779), “cheeseburger” (933), “cliff” (972), “earthstar” (995), and “toilet tissue” (999), respectively.

Protein Inverse Folding

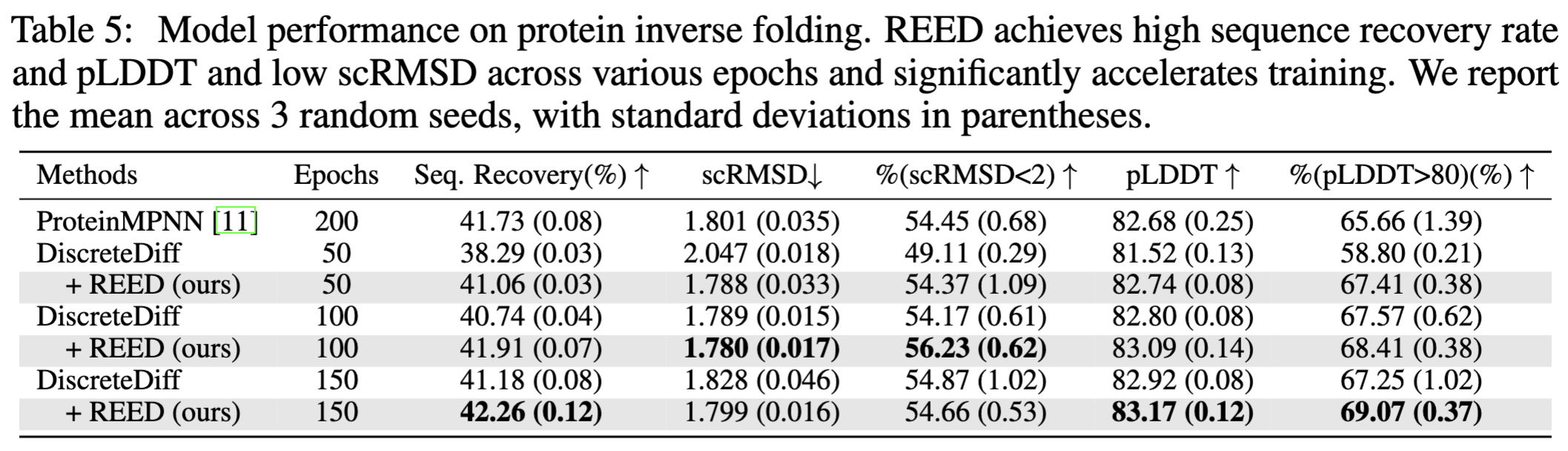

On protein inverse folding, aligning discrete diffusion models with structure and sequence embeddings from AlphaFold3 accelerates training by 3.6× and improves metrics such as sequence recovery, RMSD, and pLDDT.

We provide several qualitative samples generated by REED as below.

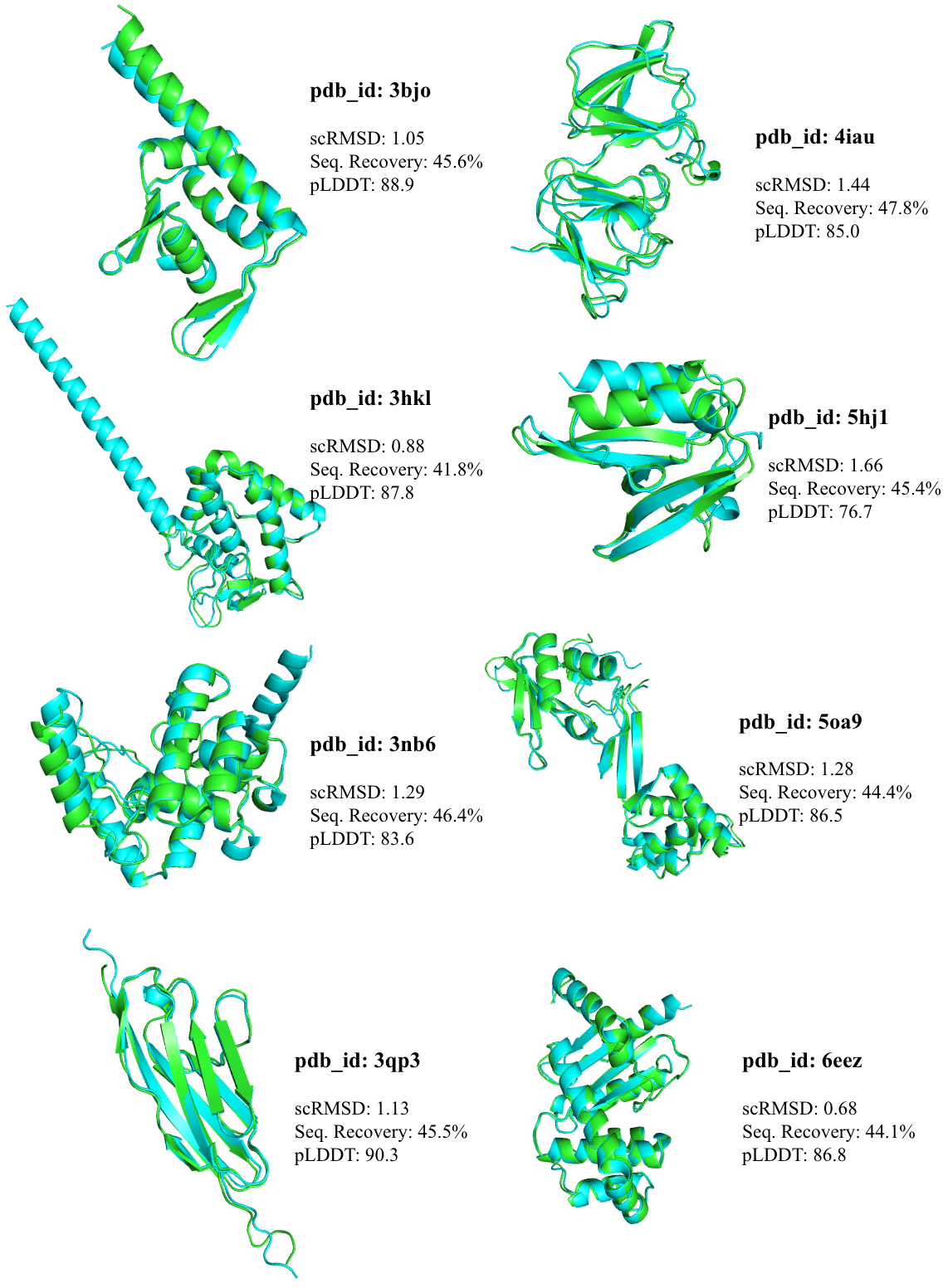

Figure 5: Selected samples on protein inverse folding. Green color denotes the ground truth structure and blue color denotes the generated sequence folded by ESMFold.

Molecule Generation

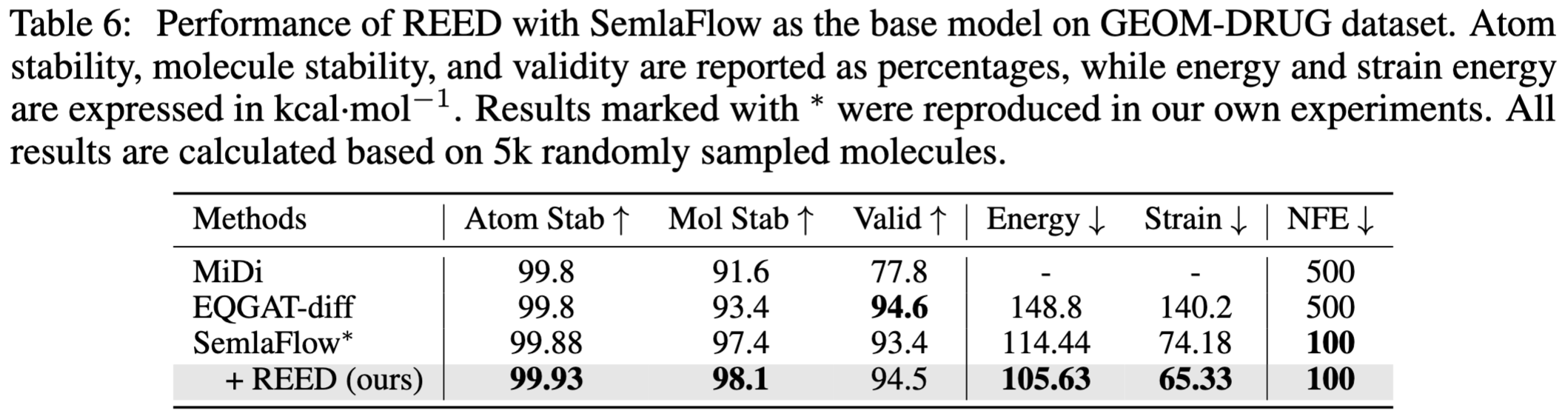

On molecule generation tasks, REED enhances stability, validity, energy, and strain by pairing flow-matching models with pretrained 2D-3D joint embeddings.

We provide several qualitative samples generated by REED as below.

Figure 6: Selected samples on molecule generation.
